A1 Fire Rated Air Brick & Duct Kit
Suitable for residential buildings
Part F - Part B - Part O

ResiBRICK™

The trusted choice for A1 fire rated air bricks for external walls

ResiBRICK™ is a leading range of A1 non-combustible air brick and duct termination kits specifically designed for residential ventilation systems such as MVHR.
Manufactured to the highest UK standards, ResiBRICK™ products ensure compliance with Building Regulations Part B (fire safety) and Part O (overheating), delivering reliable, high-performance ventilation terminations that protect buildings and occupants

A1 Non Combustible Products

In accordance with Approved Document B Volume 2 (2019 edition incorporating 2020/22 amendments), combustible materials have been banned in and on the external walls of buildings in the following instances;

• Residential Buildings over 11m (England & Wales)
• Recreational & Assembly Buildings over 18m
• Buildings over 11m (Scotland)
• Any buildings undergoing unsafe cladding remediation work

The fire resistance classification criteria for construction products is detailed in BS EN 13501w+ A1:2018 and includes a list of products (European Commission 96/603/EC) which, under specified conditions, can be considered to be class A1 without testing. Galvanized steel achieves a fire class A1 rating without the need for testing. This material maintains its strength at elevated temperatures, (melting point range of 1450-1520°C). Classified as A1, it is defined as non-combustible.

ResiBRICK™ Duct Selector

What duct connection do you need?

Select your size:

204 x 60 mm220 x 90 mm300 x 100 mm300 x 125 mm400 x 100 mm400 x 125 mm
204 x 60

Select your size:

125 Ǿ mm150 Ǿ mm180 Ǿ mm200 Ǿ mm250 Ǿ mm
125 Ǿ

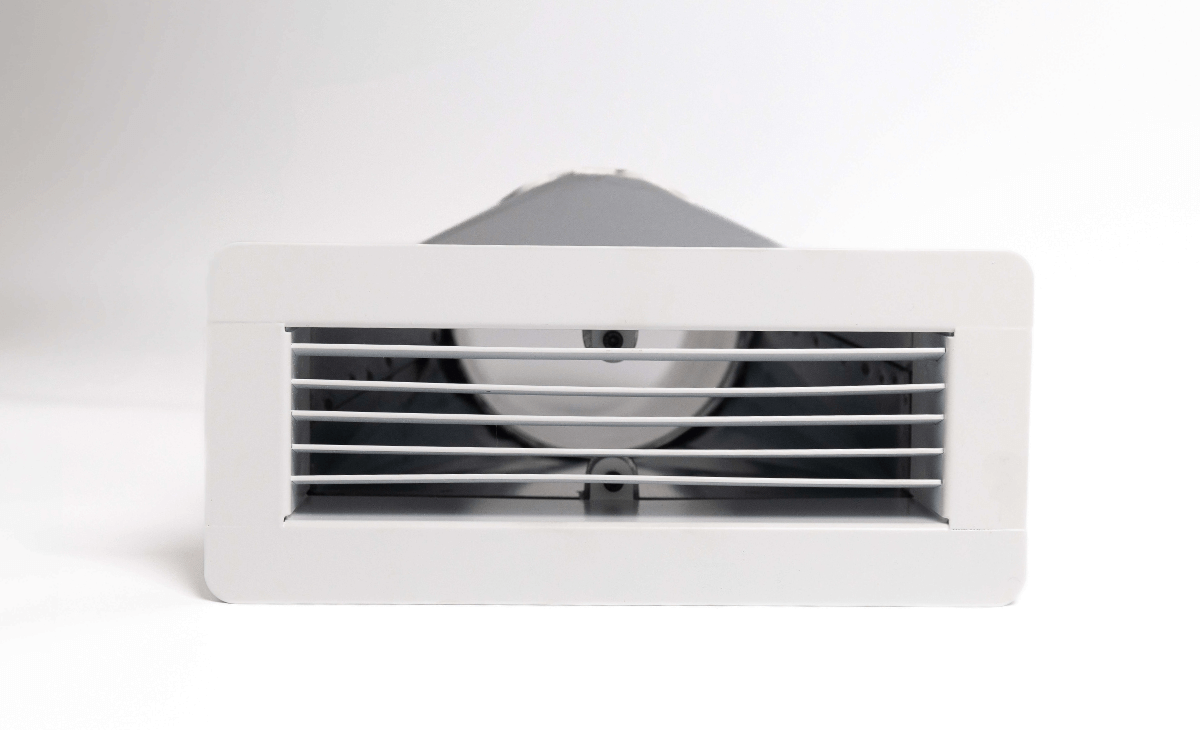

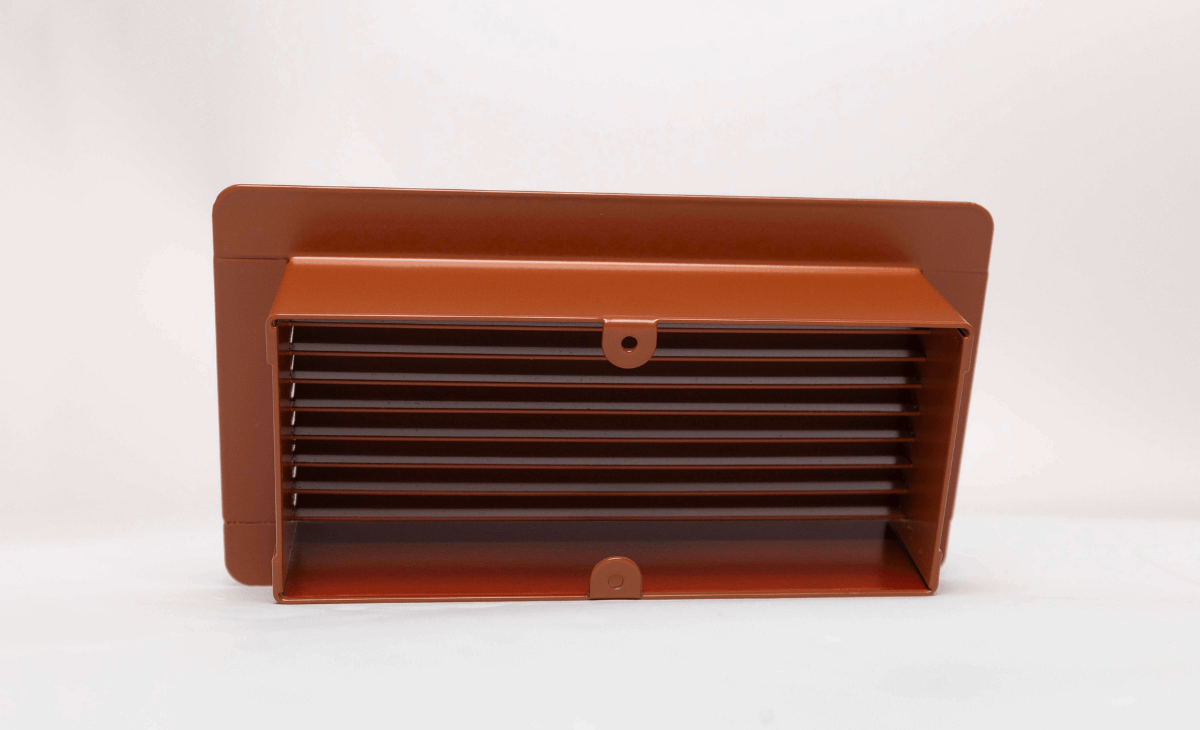

Secure For Life

Unique Mechanicel Fixing for for longevity, safety and reliability in performance critical environments

Permanent Fixing

Unlike perishable adhesives or mortar, the mechanical fixings offer a stable, non-degrading installation method that retains performance over the full life cycle of the building.

Improved Safety

The mechanical fixing ensures ResiBRICK™ stays securley in place, minimising risk of displacement, obstruction or failure.

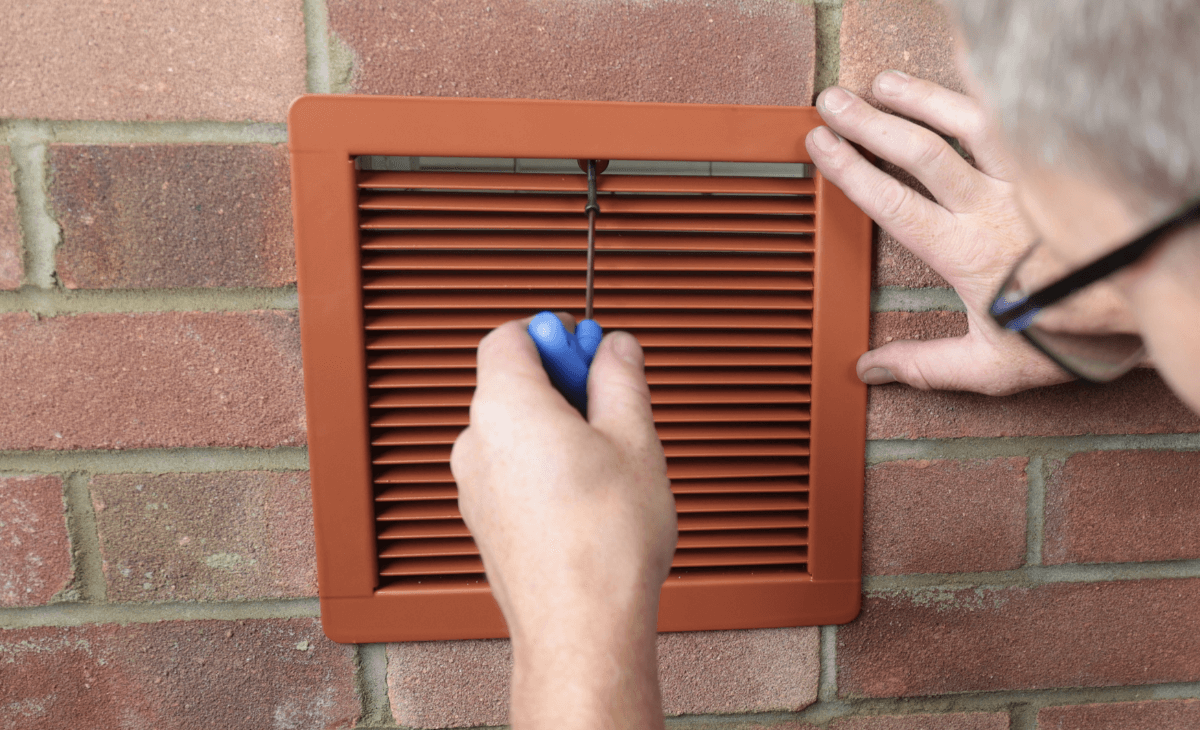

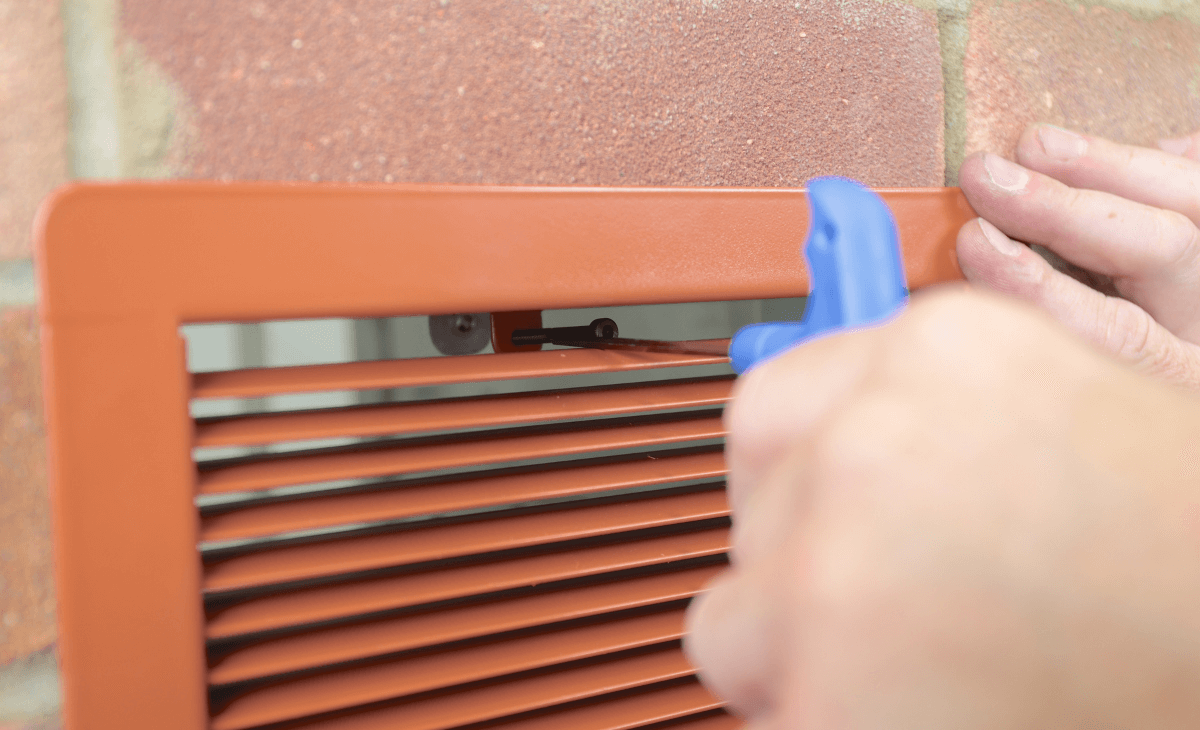

Faster Installation

All ResiRBICK™ kits are provided with a fixing tool for onsite installation.  The First Fix ducting is delivered with pre-installed screws which are used for securing the air brick at 2nd fix.

All in one kits.
5 Fire Rated Air Brick & 11 Duct Transition Sizes Available

Independetly tested by the BRE. The largest range available in the UK.

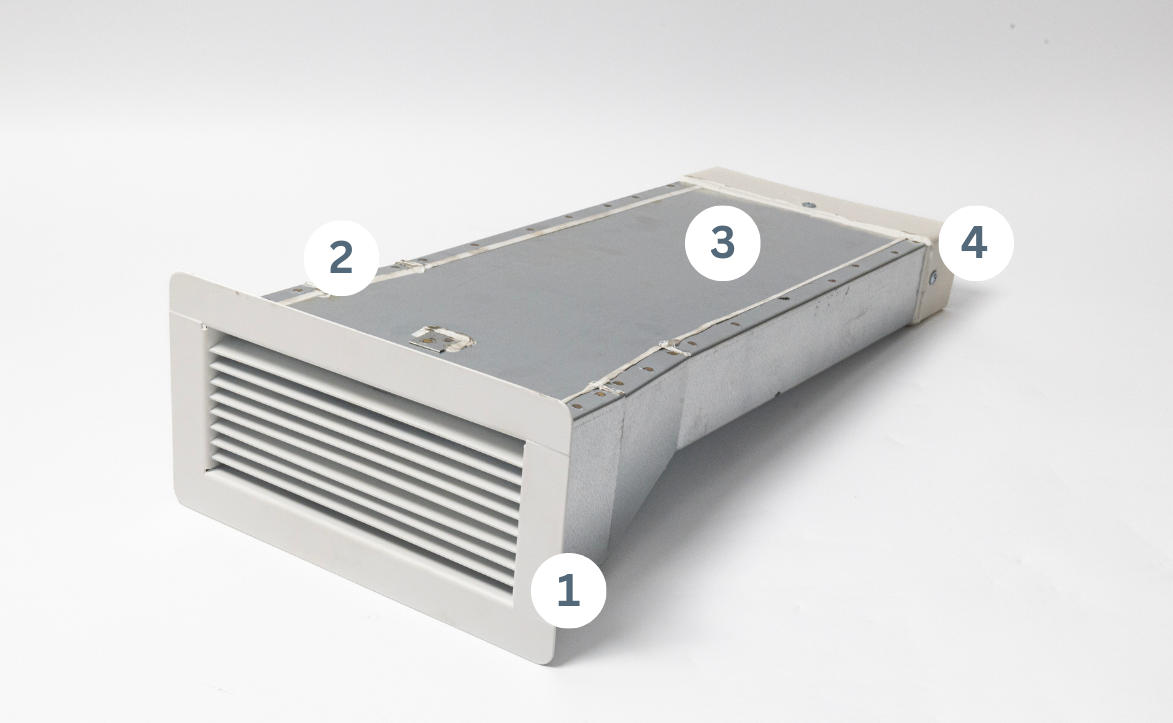

1

Metal Air Brick

ResiBRICK™ A1 Fire Rated Air Bricks are available in 5 sizes, including Single, Single XL, Double, Triple and Quad.  The A1 air bricks match UK brick sizes and offer high free area performance up to 58,050mm2.  5 Standard RAL colours. Independently tested by BRE.

2

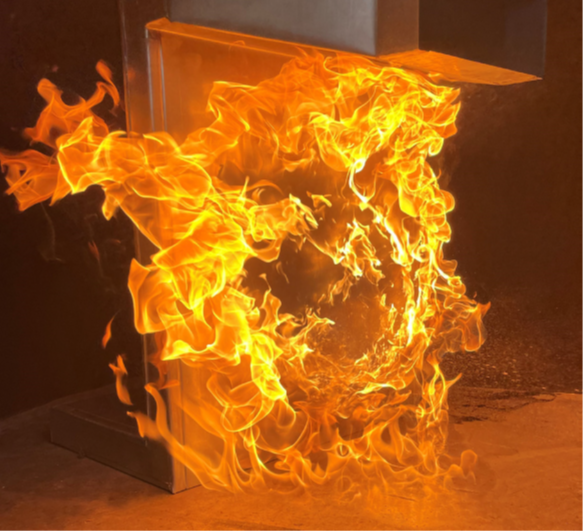

Fire Rated

ResiBRICK™ A1 is manufactured with intumescent rated sealant which is visible, and applied externally & internally to seal all seams. Reaction to fire Class E EN13501-1. Resistance to fire Classified in accordance with EN 13501-2.

3

Duct Transition Kit

ResiBRICK™ A1 Airbrick and duct kits are standard 600mm long with a 11 duct size transition options from 204x60mm up to 400x125mm in rectangular and 125mm to 250mm circular. (bespoke lengths available on request)

4

Ready to connect

ResiBRICK™ A1 Air Brick and ducting trantision kits are supplied site ready for easy connection to internal ductwork.  Depending on duct size, the connector will be PVC or metal (ractangular kits only)

The Full ResiBRICK™ Range

ResiBRICK™ - Single

Product

Fire Rated Air Brick Kit

Dimensions (mm)

215x65x600 / 265x120x600

Duct Size

204x60mm / 125mm Ǿ

 More info

ResiBRICK™ - Single XL

Product

Fire Rated Air Brick Kit

Dimensions (mm)

215x90x600 / 204x60x600

Duct Size

204 x 60mm / 220 x 90mm / 150mm Ǿ / 125mm Ǿ

 More info

ResiBRICK™ - Double Air Brick

Product

Fire Rated Air Brick Kit

Dimensions (mm)

215x140x600 / 265x190x600

Duct Size

150mm Ǿ/ 180mm Ǿ / 204x60mm / 220x90mm

 More info

ResiBRICK™ - Triple

Product

Fire Rated Air Brick Kit

Dimensions (mm)

215x215x600 / 265x265x600

Duct Size

180mm Ǿ / 200mm Ǿ / 300 x 100mm / 300 x 125mm

 More info

ResiBRICK™ - Quad

Product

Fire Rated Air Brick Kit

Dimensions (mm)

215x290x600 / 265x340x600

Duct Size

200mm Ǿ / 250mm Ǿ / 400 x 100mm / 400 x 125mm

 More info
Request a Quote or Speak to the Team

Brick By Brick

ResiBRICK™ is precisely dimensioned to match UK standard brick sizes.

The metal Firet rated airbricks are designed for effortless integration into brickwork, resulting in clean, aesthetically pleasing finishes that complement architectural intent without compromise

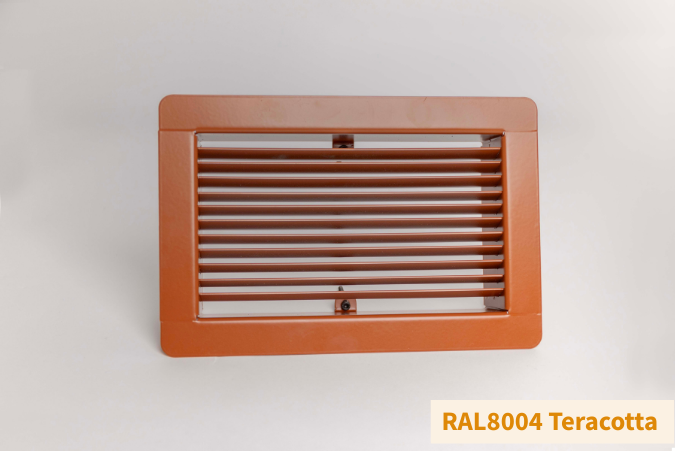

5 Standard Colour Options

Bespoke RAL colours and finishes also available.

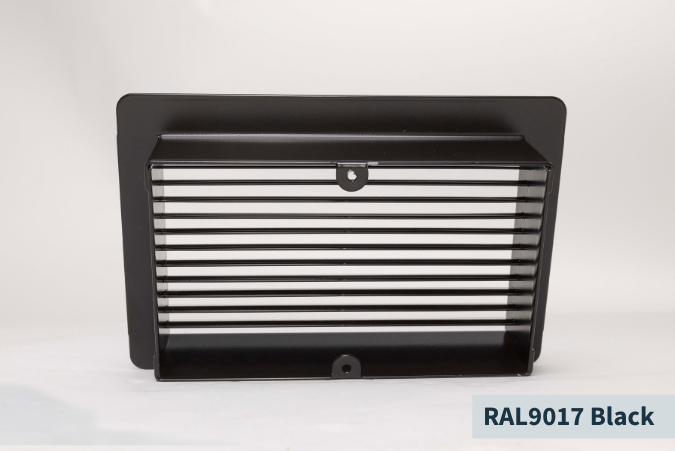

ResiBRICK Black

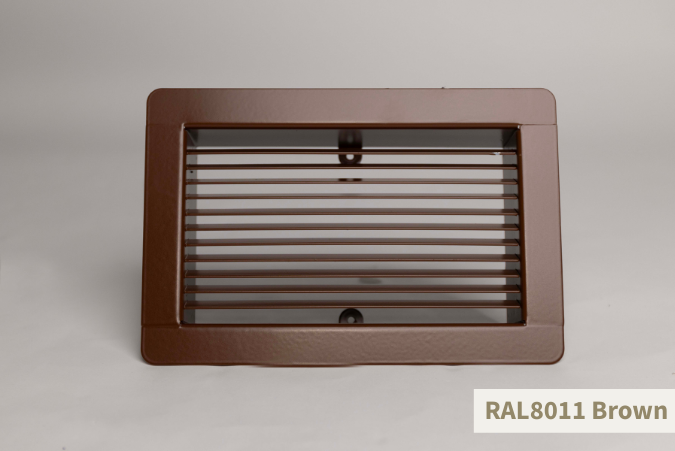

ResiBRICK Brown

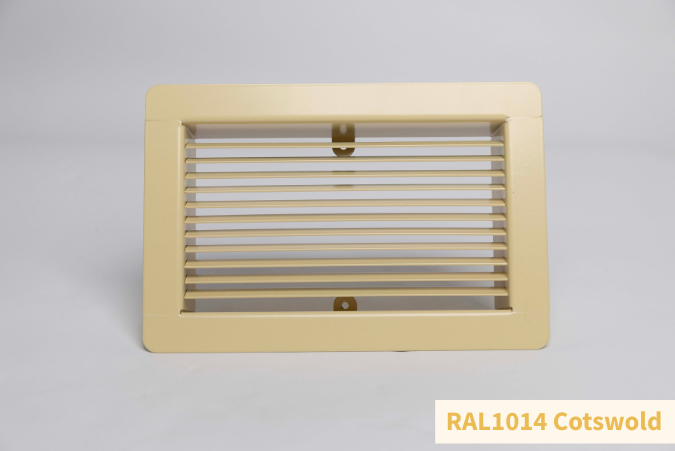

ResiBRICK Gold
ResiBRICK White

Bespoke RAL colours and finishes also available.
