Simplified compliance for MVHR System Design

The MVHR unit is only half the story.

From internal ducting to external terminations — meet ResiONE™, the integrated solution for Parts B, F, and O

ResiONE™

A single specification approach for high performance MVHR system design

featuring ResiDUCT™ low profile ducting and ResiBRICK™ fire rated terminals

How does ResiONE™ simplify compliance?

With increasing airflow rates driven by Regulation around energy efficiency, indoor air quality and overheating, the performance requirements of residential ventilation systems such as MVHR are increasing.  Developments in MVHR unit performance can now be matched with a simplified ducting and termination solution that helps reduce complexity in design and overall cost whilst achieving compliance with ease.

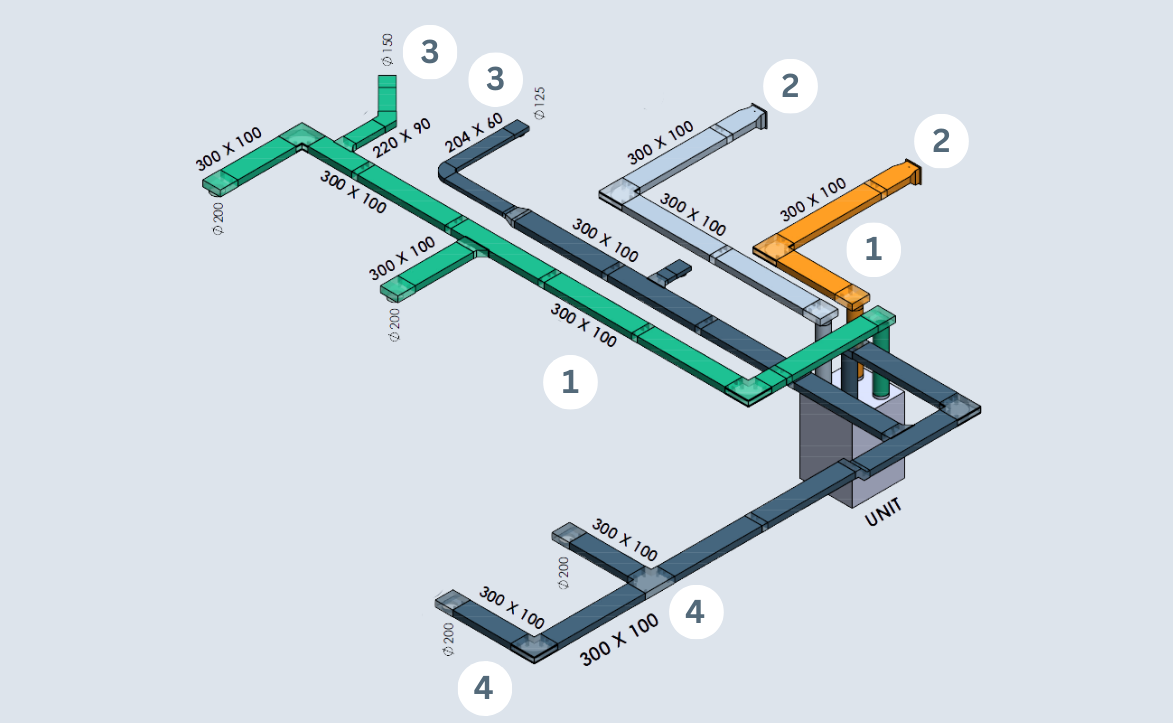

ResiONE™ In Practise

Utilising ResiDUCT™ and ResiBRICK™ helps simplify design for MVHR Systems - reducing cross overs,
multiple duct runs to each room and increased ceiling void requirements (and cost)

1

ResiDUCT™

The 300x100mm ducting, equivalent to 180mm∅, provides high airflow capacity to meet overheating rates whilst fitting withing a standard ceiling void.

Also available in 300x125mm (200mm ∅), 400x100 (205mm ∅) and 400x125mm (230mm ∅)

2

ResiBRICK™

The Triple Airbrick & duct transition kit offers A1 non-combustibile certification for Part B compliance.

Also available in Single, Single XL, Double and Quad. Compatible with ResiDUCT™ 300x100 ducting for high free area terminations.

3

Hybrid - Metal & PVC

Where high airflow rates are required for overheating, hybrid ducting designs are becoming common practise

ResiDUCT™ is fully compatible to transist to a range of PVC sized ducting - showing here 220x90mm with 300x100mm

4

Optimised Performance

ResiDUCT™ addresses air leakage to ensure installed performance is achieved at low noise levels.

Integral stiffeners, socket seals and turning vanes prevent bowing and leakage gaps and help optimise performance.


What are the benefits of the ResiONE™products?

Together ResiBRICK™ and ResiDUCT™ offer a simplified ducting and termination design for MVHR systems, particularly those with increased airflow rates required as Part O Compliance.  As an alternative prodict solution, the ResiONE™ products offer;

  • Ducting that easily fits in a ceiling void without alterations
  • Avoids multiple cross overs and a busy void filled with ducting
  • Reduces material list and installation time (reducing overall costs)
  • Fully compatible external terminations for high airflow performance
What are the benefits of the ResiONE™products?
